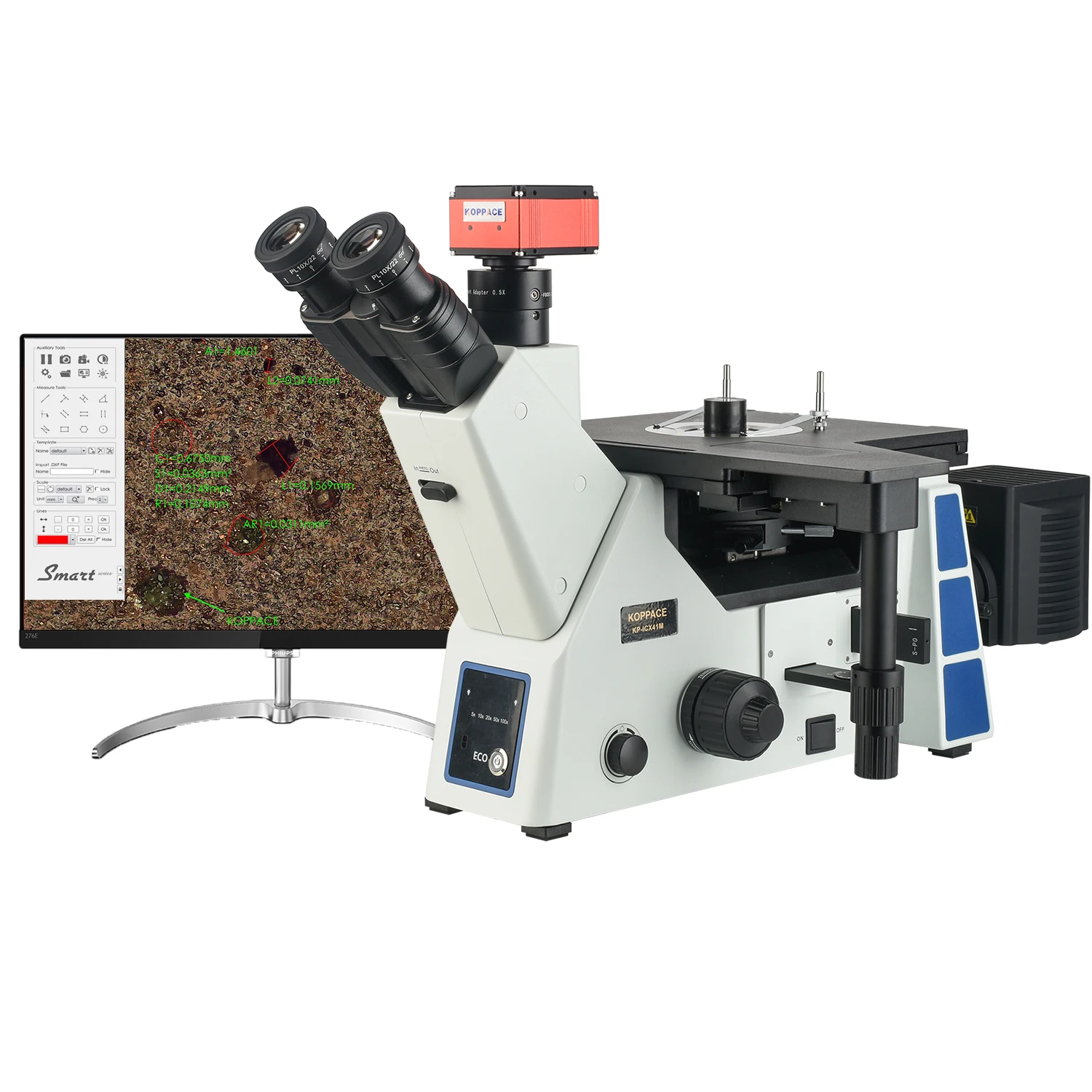

KOPPACE 193X-1935X Measurement Metallographic Microscope 4K HD Camera Support Photography Video
$26,279.97
- Brand Name: KOPPACE
- Hign-concerned Chemical: None
- Magnification Ratio: 500X & Under
- Origin: Mainland China
- Theory: Metallurgical Microscope
- Model Number: KP-ICX41M-4K
- Certification: none
- Material: Metal
- Drawtube: Trinocular
|
Model |
KP-ICX41M-4K |
|
Electronic Amplification |
193X-1935X |
|
Optical Magnification |
50X、100X、200X、500X |
|
Optical System |
Infinity Chromatic Aberration Correction Optical System |
|
Observation Tube |
Three-eye Viewing Tube, 45° Tilt,Hinge Group can be 360° Rotation,Fixed Eyepiece Tube,Pupil Distance Adjustment Range of 50-75mm |
|
Eyepiece |
High Eye Point Large Field of View Flat Field Eyepiece PL10X22mm |
|
Objective Lens |
LMPL-BD Infinite Long Working Distance Bright and Dark Field Metallographic Objective |
|
Converter |
Bright and Dark Field Five-Hole Converter With DIC Slot |
|
Coarse and Fine Focusing Mechanism |
Reflection Light and Dark Field Metallographic Frame,Using Low Hand Position Coaxial Coarse Fine Adjustment,Coarse Adjustment Stroke 9mm, The Focus Facing up 6.5mm,Down 2.5mm,Fine Adjustment Precision 0.002mm,With an Elastic Adjustment Handwheel to Prevent Sliding |
|
Operating Platform |
Three-layer Mechanical Moving Platform,Platform Size:240 (W) ×250 (L),Moving Range of 50×50mm,Two-Way Wire Rail Drive,Right Hand Low Hand Control |
|
Lighting System |
Light and Shade Field Reflector With Variable Field of View Aperture,Aperture Aperture,the Center is Adjustable;With Light and Shade Field Switching Device,With Filter Slot and Polarizing Device slot;12V100W Halogen Light Box (Reserved Center),Light Source Brightness Continuously Adjustable,With Light Source Brightness Indicator Bar,With Infrared Induction Function;Adopt External Wide Voltage Transformer,Input 100-240v,Output 12V5A |
|
Polarization Device |
Deviating Mirror Insert Plate,360° Rotary Deviating Mirror Insert Plate |
|
Trinocular Interface |
0.5X Camera Tube,C-type Interface,Adjustable Focus |
|
Pixel |
8.3 Million Pixels |
|
Output Method |
HDMI、GigE |
|
Sensor |
8.3M |
|
Sensor Size |
1/1.8" CMOS |
|
Resolution Frame Rate |
3840 X 2160,Photo Resolution 7680 X 4320 |
|
Frame Rate |
60 Frame |
|
Pixel Size |
2.0μmx2.0μm |
|
Color Adjustment |
R、G、B |
|
Exposure |
Auto/Manual |
|
White Balance |
Auto/Manual |
|
Image Adjustment |
Exposure Value,Saturation,Brightness,Contrast,Clarity,Reflector,Black and White,Flip,Reticle |
|
Capture |
Can Capture Images and Videos of the Preview Screen |
|
Storage Mode |
U Disk Storage,Can take Photos,Video,Measurement |
|
Gigabit Network Interface |
Provide Professional Measurement Software,Through the Network Interface Connected to the Computer for Photo Measurement |
|
Camera Function |
◆ High-Performance light-Sensitive Chip,Low Noise,High Sensitivity,and True Color; |
|
Packing List |
1、A pair of Eyepieces PL10X/22mm |
|
Note |
1. This Product Does not Contain a Display; |
*****************************************************************************************************************************************************************************
